| Item Name | Flush Hinge with thread stud 38x60mm |
|---|---|
| Part no. | 99317, 99296 |
| Size | 38x60mm |
| Length(mm) | 60 |
| Width(mm) | 38 |
| Thickness(mm) | 3 |
| Thread(mm) | 5 |
| Thread Length(mm) | 23 |
| Material | made in stainless steel 316 |
| Other | precision casted |
| Remark | mirror polished |

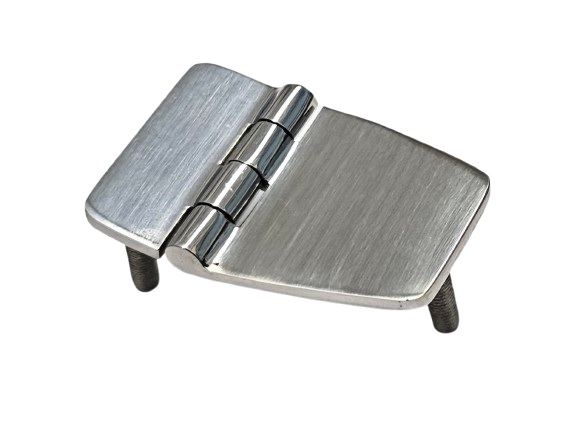

Stainless steel 316 Flush Hinge with thread stud
- size 38x60mm (width 38mm, length 60mm)

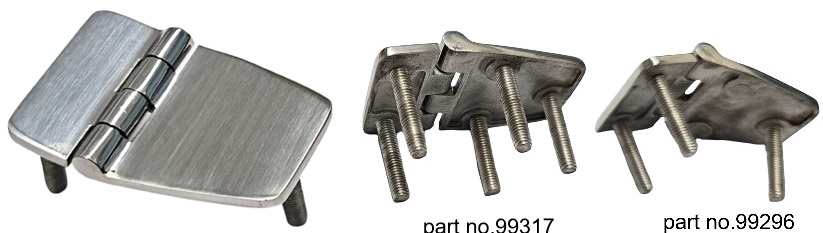

- with five thread studs(part no.99317)
- with three thread studs(part no.99296)
