| Item Name | Swage Stud Terminal with nut Metric Thread |
|---|---|
| Part no. | 46605 46606-1 46606-2 46606-3 46608-1 46608-2 46610 |
| Size | 5mm, 6mm, 8mm, 10mm |
| Wire Dia.(mm) | for wire rope 2.5mm, 3.2mm(or 3mm), 4mm, 5mm, 6mm |
| Thread(mm) | metric thread |
| Material | made in stainless steel 316 |
| Other | wire size: 2.5mm, 3.2mm(or 3mm), 4mm, 5mm, 6mm |

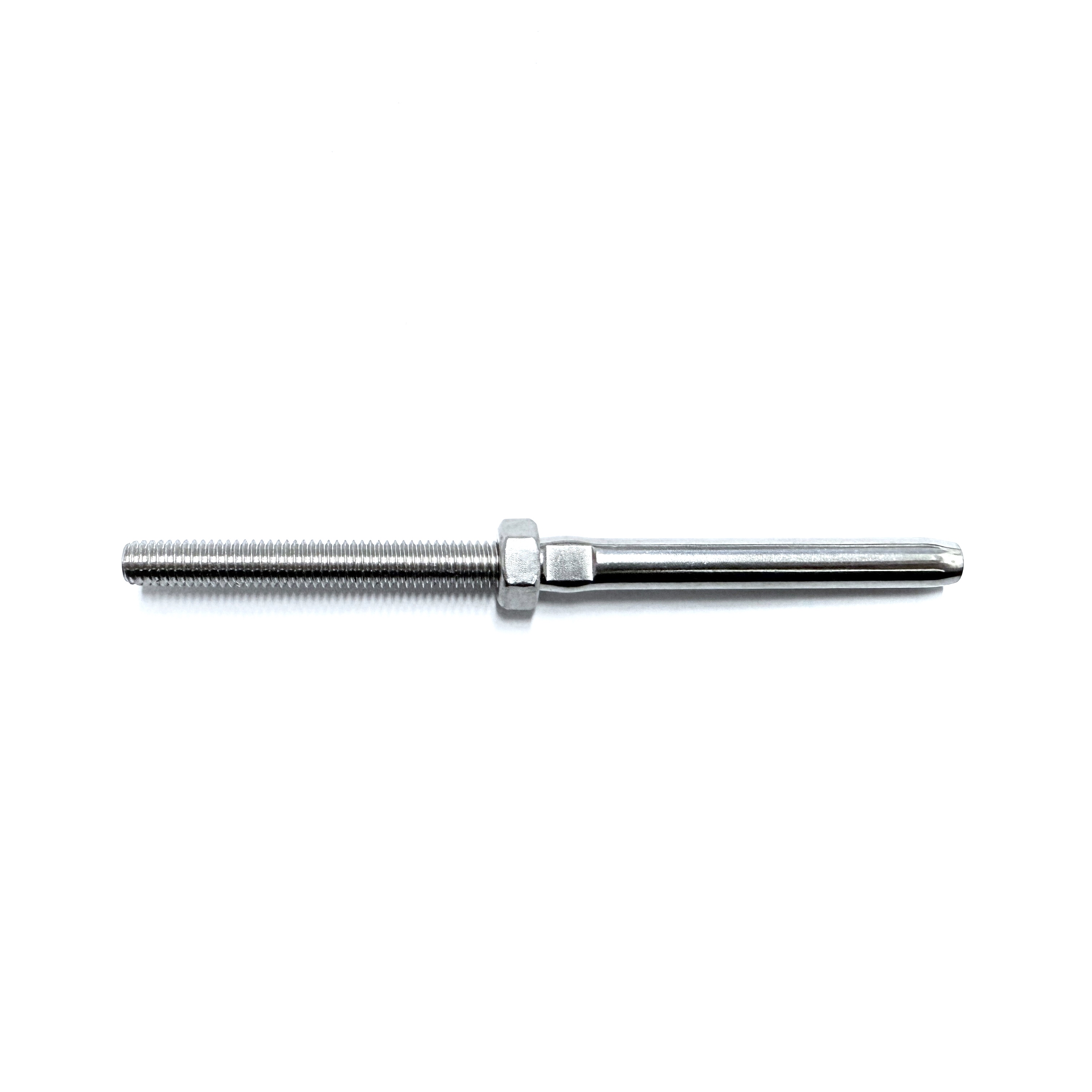

Stainless steel 316 Swage Stud Terminal with nut Metric Thread

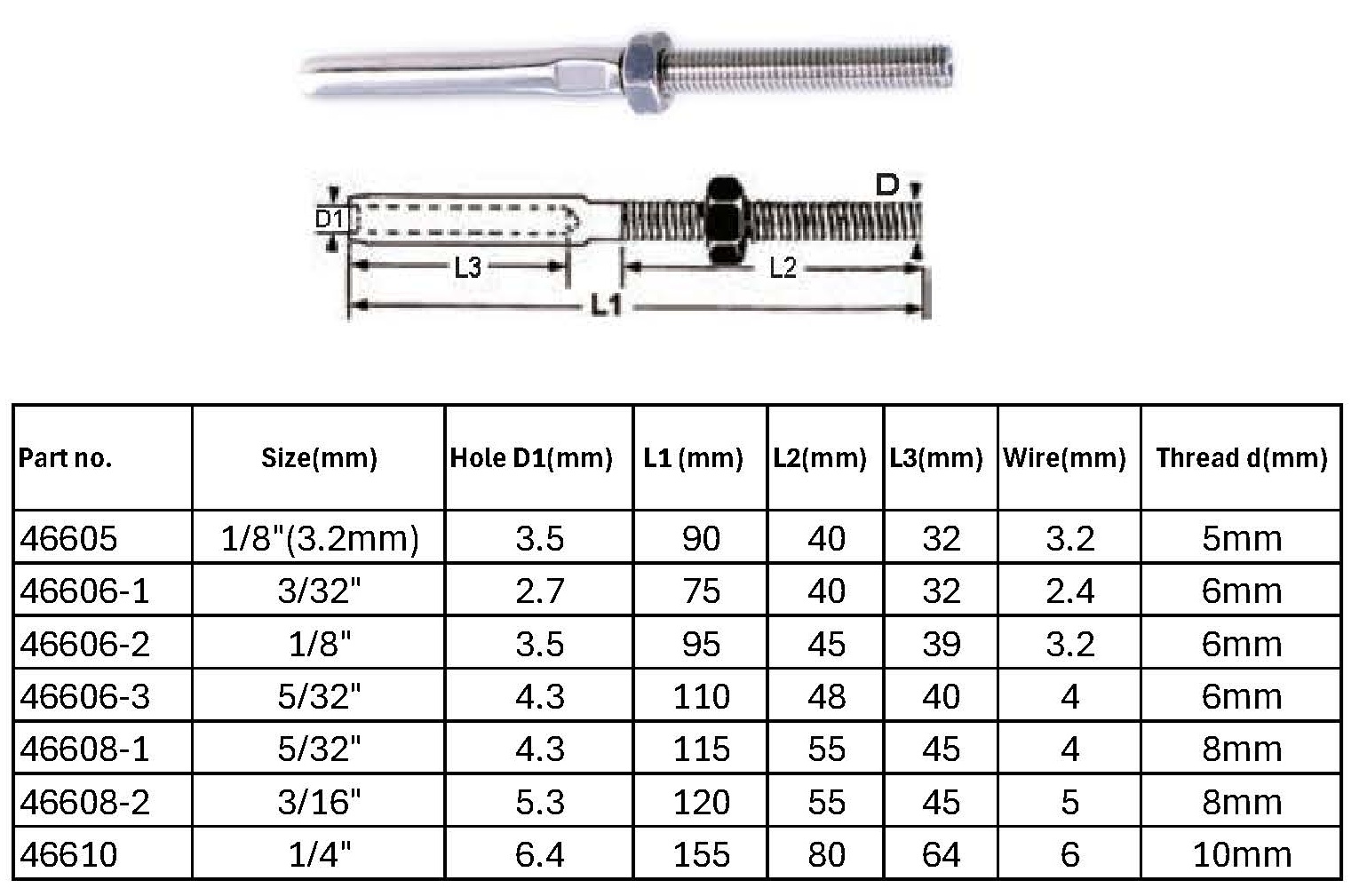

Remark: the real dimensions are not exact same as showed, the showed dimensioms and breaking load are approximate, just for reference, are nominal and should be used as guide only.
